WK-com F air handling units with flat construction

High performance, compact design

WK-com F air handling units with flat construction

Always the right decision!

WOLF WK-com F compact flat units are ideal for convenient and efficient ventilation of demanding applications. The compact designs of the energy-optimised modules are versatile and feature a high output range. Depending on customer requirements, maintenance is performed from below or from one side of the unit. All components are fully internally wired to the individually configurable WOLF C-max control unit and the terminal unit (if an on-site control unit is used), making these air handling units versatile and fully customisable for your application.



WOLF WK com F 3er

Advantages

  • Units can be operated and serviced from the side or from below
  • Compact design that complies with all standards and regulations
  • Large output range of up to 3500 m3/h
  • Designed to VDI 6022
  • Compliance with Ecodesign Regulation 2018
  • Efficient, high-grade and performance-tested fitted parts
  • Acoustically optimised casing design for nearly silent operation
  • Easy installation thanks to stable self-supporting casing desig
  • Prepared for suspended mounting as standard
  • All internal cabling on externally mounted switch cabinet/terminal unit
  • Optional switch cabinet with WOLF C-max DDC controller mounted or supplied loose for wall mounting
  • Large selection of control devices, room programming units and touch panels
  • Communication possible via Modbus, BACnet and LON
  • Individually expandable with demand-optimised components, such as silencers, heating coils (PWW/electrical), cooling coils (PCW/direct expansion coil), filters and many more.
  • Casing in zinc-plated sheet steel, stainless steel V2A, aluminium AlMg3, paint finish (RAL to customer requirements)
  • Versatile application
  • Calculation with tested and certified sizing program

Quality guarantee

Quality guarantee Logo ErP
Quality guarantee Logo TÜV Süd
Quality guarantee Logo A plus
Quality guarantee Logo CE
Quality guarantee Logo RLT
Quality guarantee Logo IP

The compact solution

WK-com F air handling units are the ideal solution for providing rooms with optimum air conditioning from compactly sized units. The extremely slimline units of this series feature superior energy efficiency, power saving EC fans, efficient heat recovery systems and tested filter technology. The perfect system for your air handling requirements. With our modular system, there are no limits to your adaptation options. They air condition your project in line with demand, hygienically to VDI 6022 and efficiently to ErP 2018.

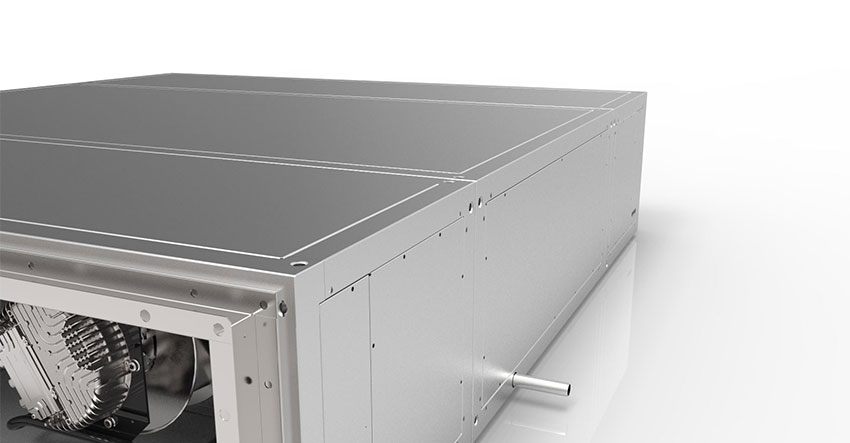

WK-com F exterior

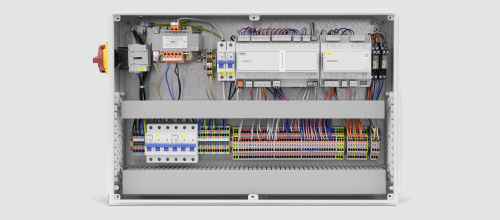

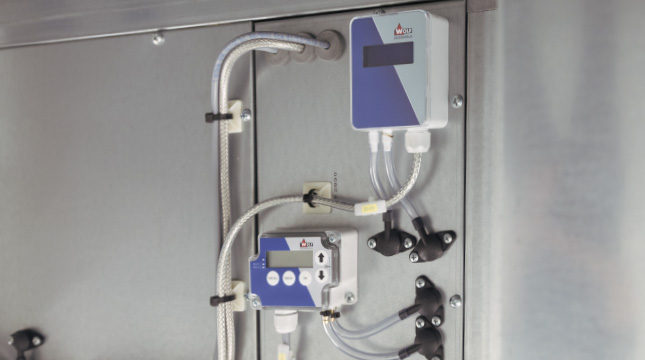

Control

Control

Combination of the WK-com flat units with the WOLF C-max control unit yields an intelligent system solution in which all components work together perfectly. Mounted fully wired on the air handling unit for quick and easy commissioning at the installation location.
Optionally without control unit, with internal wiring to externally mounted docking stations and terminal boxes.

Material variety

You decide on the material: zinc-plated, stainless steel, aluminium (AlMg3) or painted/coated to customer requirements. Even combinations, such as a stainless steel internal casing with a zinc-plated outer shell, can be implemented easily.

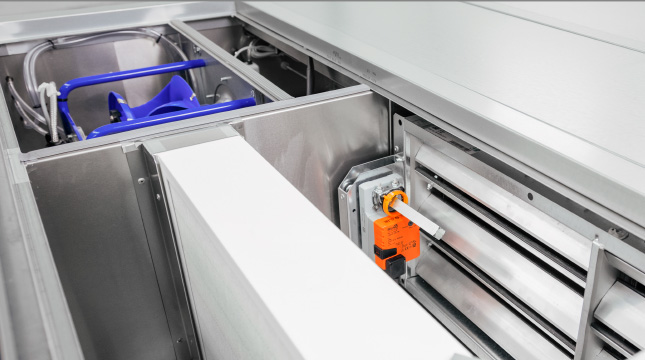

Unit mounting

Unit mounting

The unit fixing holes provided as standard enable simple and secure mounting on the ceiling. Access for inspection and maintenance is not impaired.
Hygiene

Hygiene

With their smooth inner surfaces, WK-com flat units ensure no breeding ground for micro-organisms. Their casing is sealed hygienically with tested, microbially inert sealants.

Noise transmission

To prevent noise transmission (of both structure-borne and acoustic noise), only insulating connectors (zinc-plated or stainless steel) are used. These can be completely isolated and insulated to prevent the formation of weak spots. Whisper-quiet: The acoustically optimised casing design with a sound-­absorbing coefficient Rw of 38 dB to DIN 52210 minimises noise emissions from the fans.
Unit connection

Unit connection

The externally mounted module connectors enable swift, secure and permanent unit installation.
  • Control

    Control

    Combination of the WK-com flat units with the WOLF C-max control unit yields an intelligent system solution in which all components work together perfectly. Mounted fully wired on the air handling unit for quick and easy commissioning at the installation location.
    Optionally without control unit, with internal wiring to externally mounted docking stations and terminal boxes.
  • Material variety

    You decide on the material: zinc-plated, stainless steel, aluminium (AlMg3) or painted/coated to customer requirements. Even combinations, such as a stainless steel internal casing with a zinc-plated outer shell, can be implemented easily.
  • Unit mounting

    Unit mounting

    The unit fixing holes provided as standard enable simple and secure mounting on the ceiling. Access for inspection and maintenance is not impaired.
  • Hygiene

    Hygiene

    With their smooth inner surfaces, WK-com flat units ensure no breeding ground for micro-organisms. Their casing is sealed hygienically with tested, microbially inert sealants.
  • Noise transmission

    To prevent noise transmission (of both structure-borne and acoustic noise), only insulating connectors (zinc-plated or stainless steel) are used. These can be completely isolated and insulated to prevent the formation of weak spots. Whisper-quiet: The acoustically optimised casing design with a sound-­absorbing coefficient Rw of 38 dB to DIN 52210 minimises noise emissions from the fans.
  • Unit connection

    Unit connection

    The externally mounted module connectors enable swift, secure and permanent unit installation.
    WK-com F air handling units with flat construction Modular Design

    Modular design

    Thanks to the modular, inherently stable framework construction, all arrangements and combinations are possible. The WOLF modular design allows a wealth of variations and solutions. You choose the side from which to operate. Whether you are looking for operation and maintenance from the side or below – every conceivable casing arrangement is feasible with WK flat units.

    WK-com F interior

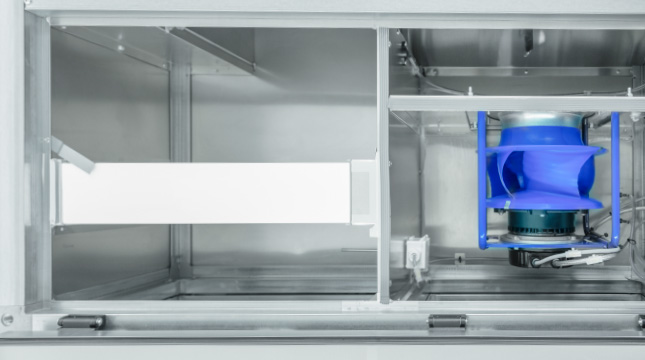

    Fans

    Fans

    The WK-com F uses energy saving EC fans. Apart from a high efficiency of IE4, they boast extremely quiet and low-vibration operation thanks to the optimised blade profile.
    The integrated electronics make frequency converters unnecessary and ensure demand-dependent, variable speed control.
    3D Condensate Pan

    3D Condensate Pan

    At high levels of heat recovery, condensate forms during cooling and humidification. This must be removed quickly and reliably. The WOLF 3D pan, made from aluminium or stainless steel, has a three-dimensional fall, which reliably prevents water residues and the associated hygiene risks from bacterial growth.
    Heat recovery

    Heat recovery

    High-grade counter-current plate heat exchangers with heat recovery coefficients up to 90 % recover valuable energy from the extract air. The wear-resistant systems impress with high operational reliability, relatively low costs of purchase and efficiency in operation. They are hygienically safe thanks to fully separated air flows. The standard integral bypass with control damper and servomotor enables optimum output control. The surroundings of the heat recovery system can also be used for free cooling (introduction of cool outdoor air for room cooling without any use of artificial cooling energy).
    Filters

    Filters

    All WK-com flat units are fitted with 48 or 96 mm thick panel filters as standard (M5-F9) to EN 779 (2012) or ePM 1 - ePM 10 to ISO 16890. Additional filters can optionally be fitted by adding filter sections, for example in the biostatic version. The filters treated with biostatic preservative prevent the growth of fungi and bacteria to ensure clean, healthy air. Biostatic filters boast an outstanding dust storage capacity and efficiency in damp conditions.
    • Fans

      Fans

      The WK-com F uses energy saving EC fans. Apart from a high efficiency of IE4, they boast extremely quiet and low-vibration operation thanks to the optimised blade profile.
      The integrated electronics make frequency converters unnecessary and ensure demand-dependent, variable speed control.
    • 3D Condensate Pan

      3D Condensate Pan

      At high levels of heat recovery, condensate forms during cooling and humidification. This must be removed quickly and reliably. The WOLF 3D pan, made from aluminium or stainless steel, has a three-dimensional fall, which reliably prevents water residues and the associated hygiene risks from bacterial growth.
    • Heat recovery

      Heat recovery

      High-grade counter-current plate heat exchangers with heat recovery coefficients up to 90 % recover valuable energy from the extract air. The wear-resistant systems impress with high operational reliability, relatively low costs of purchase and efficiency in operation. They are hygienically safe thanks to fully separated air flows. The standard integral bypass with control damper and servomotor enables optimum output control. The surroundings of the heat recovery system can also be used for free cooling (introduction of cool outdoor air for room cooling without any use of artificial cooling energy).
    • Filters

      Filters

      All WK-com flat units are fitted with 48 or 96 mm thick panel filters as standard (M5-F9) to EN 779 (2012) or ePM 1 - ePM 10 to ISO 16890. Additional filters can optionally be fitted by adding filter sections, for example in the biostatic version. The filters treated with biostatic preservative prevent the growth of fungi and bacteria to ensure clean, healthy air. Biostatic filters boast an outstanding dust storage capacity and efficiency in damp conditions.

      options, combination and extension modules

      Fan module

      Various individually sized and optimised EC fans can be used for each unit size. With their integrated electronics, the fan/motor units allow continuously variable output control.


      The sizing takes account of all external and internal resistances and ensures that the optimum fan is always selected.

      Casing options

      The frame is available in zinc-plated and stainless steel 1.4301 versions, whilst the cladding panels can be supplied zinc-plated, in aluminium AlMg3, stainless steel 1.4301 or with a RAL paint finish according to customer specification.

      WK-com F air handling units with flat construction Louvre dampers

      Louvre dampers

      Tightly closing aluminium louvre dampers (tightness category 2 to EN 1751) with external gears and axle for servomotor connection.

      WK-com F air handling units with flat construction Unit Connection

      Unit connection

      Units are connected exclusively with solid insulating connectors made from zinc-plated sheet steel (optionally stainless steel) with an integral insulating element for structure-borne noise separation. This largely prevents transmission of acoustic and structure-borne noise.

      WK-com F air handling units with flat construction FIlter Module

      Filter module

      The integrated panel filters with a very large filter surface area of grade M5-F9 (to EN 770 / grade ePM10 to ISO 16890) have an installed depth of 48 and 96 mm.


      Bag filters, compact filters, activated charcoal filters, HEPA filters or expanded metal filters can optionally be installed.

      WK-com F air handling units with flat construction PWW Heater Module

      PWW heater module

      High-grade casing module equipped with a removable heat exchanger sized individually to the output and made from copper pipes with press-fitted aluminium fins.


      Optional: Stainless steel coil frame, Coated fins

      WK-com F air handling units with flat construction Silencer Module

      Silencer module

      High-grade casing module with integral silencer links and glass fibre cover to VDI 6022. The module is sized individually in accordance with the required insertion attenuation.

      WK-com F air handling units with flat construction Electric Heater Module

      Electric heater module

      High-grade casing module with removable electric heat exchanger individually adjustable to the required output and fitted with integral safety equipment. Connection, output and safety equipment compactly mounted on the module exterior.

      WK-com F air handling units with flat construction PCW Cooling Module

      PCW cooling module / direct expansion coil

      High-grade casing module with integrated aluminium condensate pan with a three-sided slope (to VDI 6022) towards the side condensate drain.

      The coil is removable for convenient and thorough maintenance.

      The cold water heat exchanger (or direct expansion coil) consists of copper pipes with press-fitted aluminium fins and is sized for the required output.

      Optional: Stainless steel coil frame, Coated fins, Removable mist eliminator

      control unit C-max

      WK-com F air handling units with flat construction Control Unit

      WOLF C-max
      Easy and convenient operation

      All important settings can be made conveniently with the regulation and control system developed especially for the units of the WK-com F series.

      You can select the operating mode, the temperature or the required operating period.



      Pre-configured for your system

      For straightforward commissioning by the customer, the WOLF C-max is factory-configured specifically for every customer system. All that remains for the customer to do when commissioning the heat recovery unit is to specify the set values, fixed speeds, flow rate, pressure and switching times.

      At a glance

      • Room unit on-site control (optional)
      • Programming unit (HMI) for commissioning and function extension
      • Control unit ready programmed and factory-configured
      • User friendly menu system
      • Extension modules for BACnet, Modbus, LON interface (already programmed, integration of the module into existing BMS on site)
      • Remote servicing via TCP/IP
      • CO2, pressure, constant flow rate control or humidity control are possible
        Software updates by SD card
      Operating mode
      • Variable 0-100 % via 3-stage automatic system
      • Constant flow rate
      • Constant pressure
      • CO2 control
      • Humidity control
      Control type
      • Constant supply air
      • Extract air/supply air cascade
      • Room/supply air cascade
