Chiller and Heat-Pump Technology

Advantages of Air conditioning
in Air-Handling-Units (AHU)

WOLF RLT-Gerät WK-com PRO

Optimally matched

Requirements to Ventilation technology is constantly changing. Most different standards and guidelines have to be observed for a safe, sustainable and correct operation of the system even in the future.

With WOLF, you are on the safe side. We offer you efficient integrated cooling technology in WK-com AHU-Unit. Profit from a sustainable, energetically optimized overall system and a fast and simple completion on site without any overlapping areas.

WOLF RLT-Gerät WK-com PRO

Advantages

  • Everything from a single source, ready-to-connect systems
  • Wiring, piping and commissioning can be done in the WOLF factory
  • Lower investment, operating and maintenance costs
  • No long piping ways through buildings
  • High energy efficiency, no energy losses due to intermediate medium
  • Short assembly times
  • Networkable to the building management system
  • Compact design
  • Minimized planning effort
  • Fewer trade interfaces
  • Space saving, no external refrigeration system required
  • High performance figures
  • Warranty from one provider
  • Refrigerant with a future R513A
  • Refrigeration capacities of 5 – 500 kW
  • Monitoring of operating points by interface or WOLF C-MAX
  • 10 – 100 % capacity control

» EFFICIENCY OF
INTEGRATED COOLING
IS IN DETAIL «

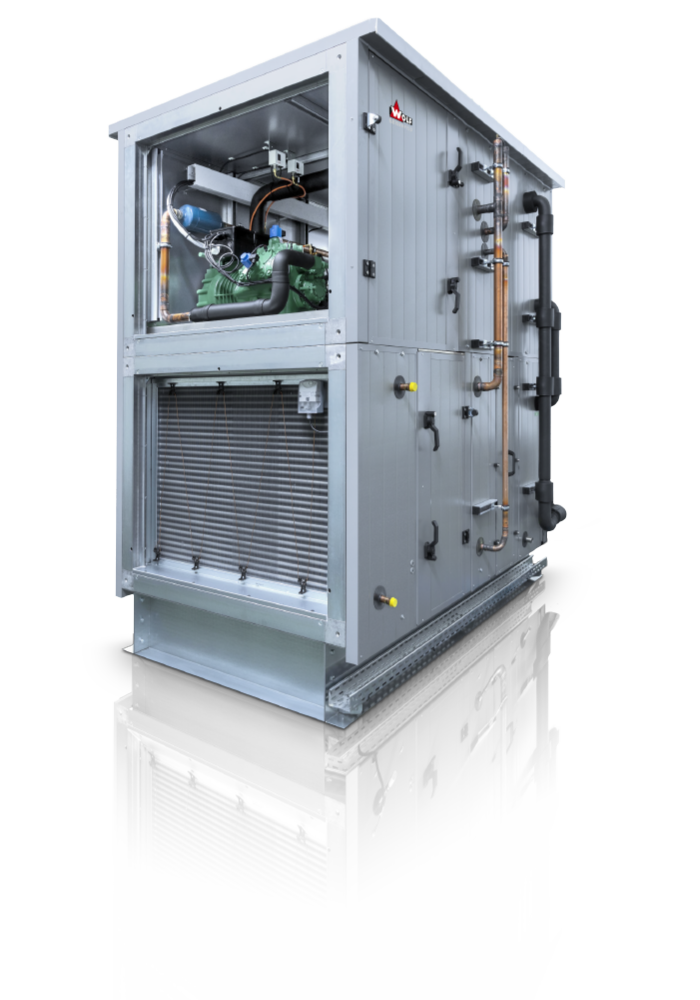

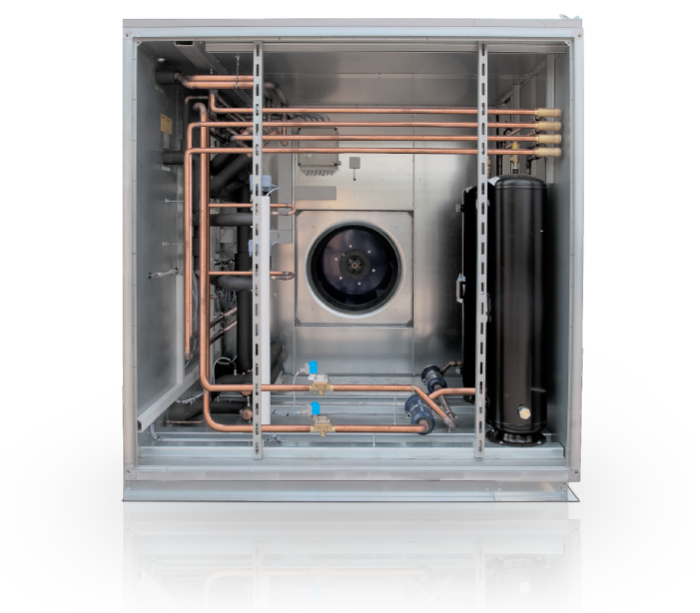

Integrated Refrigeration Technology

Quality and safety

Garantie für Qualität Logo A plus
Garantie für Qualität Logo DVGW
Garantie für Qualität Logo RLT
Garantie für Qualität Logo Ex
Garantie für Qualität Logo TÜV
Garantie für Qualität Logo A plus
Garantie für Qualität Logo ErP
Garantie für Qualität Logo CE

Future-proof design

The new EC-F-Gas Regulation (No. 517/2014) defines that manufacturers have to use refrigerants with a low GWP value (Global Warming Potential) in their units, contributing a lot to a reduction of CO2 emissions.

We at WOLF are using the climate-friendly R513A, so that you can operate your air handling unit with integrated cooling technology safely, maintenance-friendly and correctly even in the future.

The refrigerant R513A with a GWP of only 613,4 is able to reduce the potential CO2 emission to a third compared to conventional refrigerants such as R407C or R410A, contributing to a sustainable usage of modern refrigeration technology.

The new R513A is a mixture of refrigerants, consisting of 50 % of R134A and 50 % of R1234yf. By mixing the safety refrigerant R134a (A1) and the conditionally combustible refrigerant R1234yf (A2L), the refrigerant R513A (A1) is not combustible.

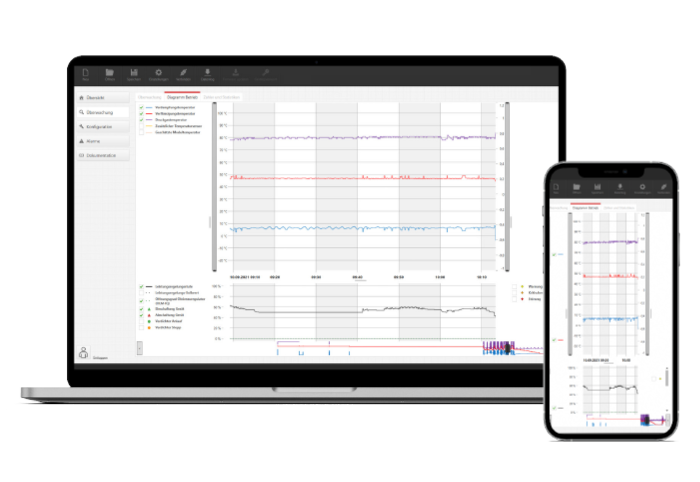

Software for a perfect plant analysis

Our AC-Systems contain a specially developed compressor module, integrating the whole electronic periphery of the compressor.

The module is monitoring the essential parameters: motor and compressed gas temperatures, oil supply and application limits.

The corresponding software can track all operating data tracked during operation. These data are recorded, enabling an ideal analysis for plant operation.

WOLF RLT-Gerät WK-com PRO

Ideal Solutions

Kältetechniker am Gerät

Competence from a single source

The refrigeration department at WOLF has decades of experience and expertise. Each customer request is processed individually in order to be able to offer the energetically and economically optimal solution.

Due to our flexible unit base, even special requests can be realized without any problems. From planning to final assembly, commissioning and on-site maintenance, you will work with certified refrigeration technology experts.

State-of-the-art technology, with its finger on the pulse. Our innovative strength from the interaction between people, technology and the company also gives you the security of being also ideally equipped in the future.

» NOT POSSIBLE IS NOT POSSIBLE «
BEST ADVICE FROM OUR
REFRIGERATION PROFESSIONALS

READY FOR ACTION IN A FLASH

Integrating a refrigeration system into WOLF air handling units reduces the on-site installation and planning effort to a minimum.

Even at the planning stage, we take into account all pipe routing and the necessary installation conditions. The cumbersome coordination between many trades involved during the construction phase. In the end, everything fits perfectly and the system can be put into operation quickly, conveniently and uncomplicated.


Comfort

Intelligent control

WOLF RLT-Gerät WK-com PRO

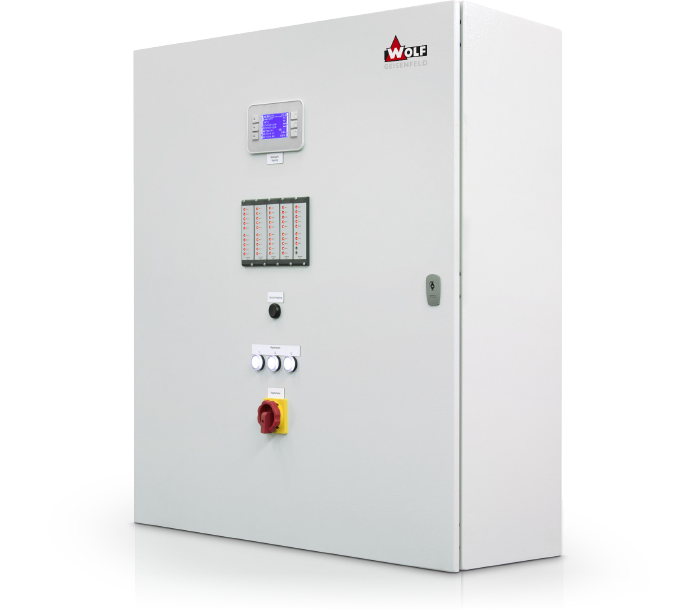

With WOLF C-MAX, you have a full overview and everything under control.

The all-in-one system is controlling the entire system of ventilation and refrigeration. WOLF C-MAX is already configured ex works specifically for each plant, so that before commissioning only the nominal values, fixed speeds, volume flow, pressure and switching times have to be adjusted individually.

WOLF RLT-Gerät WK-com PRO

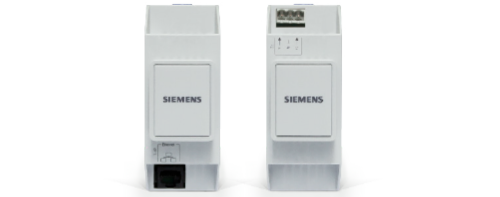

COMM Modules

Easy communication with the integrable interfaces such as Modbus or BACnet.


Control Unit and Room Unit

WOLF WOLF C-MAX is controlling all components of the entire system smartly according to the current framework conditions and pursuing the ideal control strategy, saving a maximum of energy and operating costs. is controlling all components of the entire system smartly according to the current framework conditions and pursuing the ideal control strategy, saving a maximum of energy and operating costs.


Touch Panel

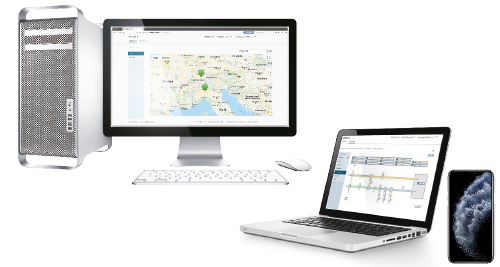

Remote maintenance option by WOLF C-MAX cloud for quick support in case of failure and a
permanent monitoring of plant parameters.


Remote Service by TCP/IP and Tool Interface

With the new monitoring system for compressors, all operating points and plant-specific parameters can be supervised and documented and meaningful analyses of system efficiency can be outputted.

WOLF RLT-Gerät WK-com PRO

Ecological and economical

WOLF RLT-Gerät WK-com PRO



SMARTCOOL by WOLF:
Adiabatic evaporation cooling for a minimized energy consumption.
Together with our highly efficient heat recovery systems, the required refrigeration capacity can be reduced considerably in summer, decreasing significantly the energy consumption of an air handling unit.

WOLF: 100% CUSTOM-FIT

Different combinations of direct refrigeration enable a suitable solution for each application.

Use the full potential!

  • Heat pump function
  • Usage of the “free” condenser heat for reheating in dehumidification operation
  • “Free” condenser heat for warm water heating or as process heat
  • “Smartcool” combination with heat recovery
WOLF RLT-Gerät WK-com PRO

Variants

Heat Pump Function

Use the full potential by:

  • Reversible direct evaporation for heating and cooling Safety in winter:
  • De-icing function by reverse circulation Enteisungsfunktion mittels Kreislaufumkehr
  • Combination with adiabatic cooling, thus lower refrigeration capacity required in summer
  • No additional heating for HVAC system required

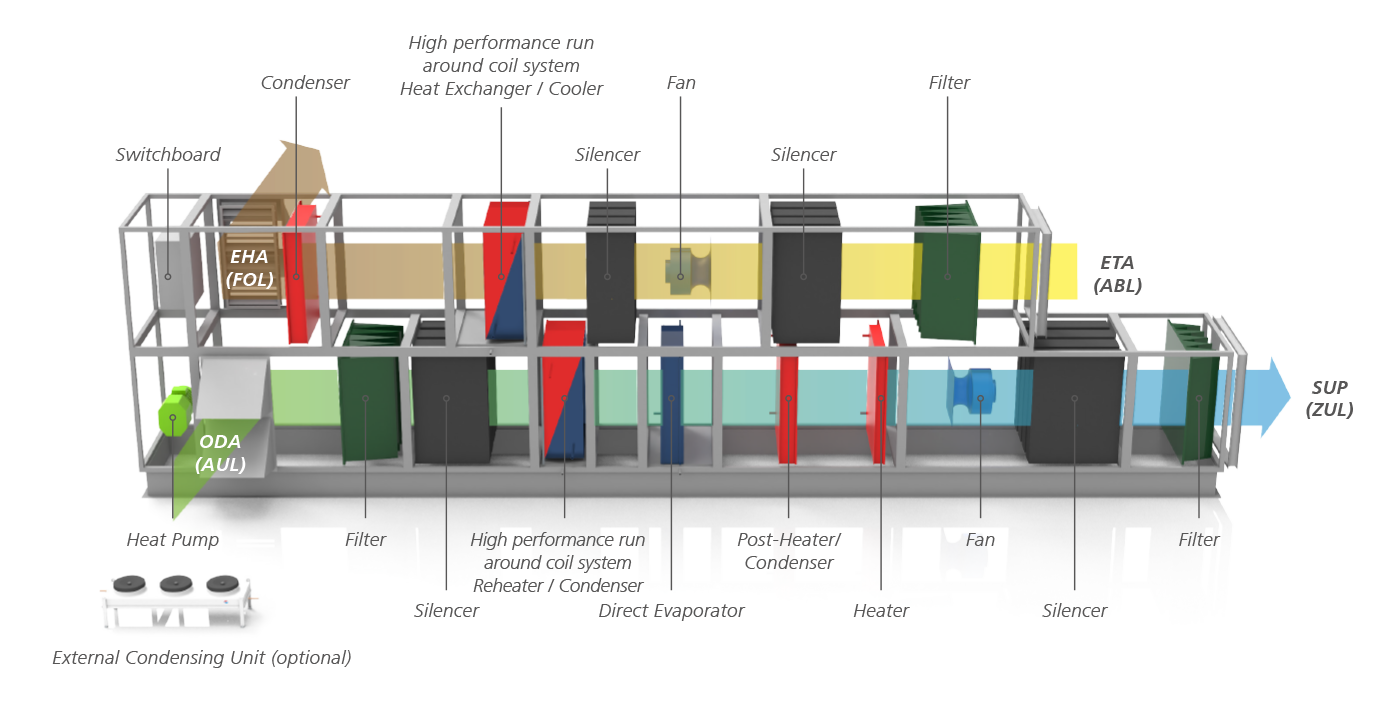

Dehumidification plant

Use the full potential by:

  • Usage of “free” waste heat of the integrated cooling system for reheating
  • Reheating by three-way valve and additional condenser after direct evaporator

Integrated refrigeration

Use the full potential by:

  • Internal condenser, no outdoor installation required
  • Combination with adiabatic cooling, thus lower refrigeration capacity required
  • Refrigeration unit separated from the air flow; easy service and maintenance
  • Heat transfer to warm water network by plate heat exchanger for energy recovery
  • Recirculating air in cooling mode; cooling of condenser by additional outdoor air or external condenser

ODA = Outdoor Air (AUL)
ETA = Extract Air (ABL)

SUP = Supply Air (ZUL)
EHA = Exhaust Air (FOL)

Further plant variants

Here we have presented three possible plants in different combinations. Moreover we are able to combine many further variants by our flexible system.

Please contact our sales team. We will find an individual solution for your specific requirements.

WOLF RLT-Gerät WK-com PRO

WOLF Inverter Heat Pumps

WOLF RLT-Gerät WK-com PRO

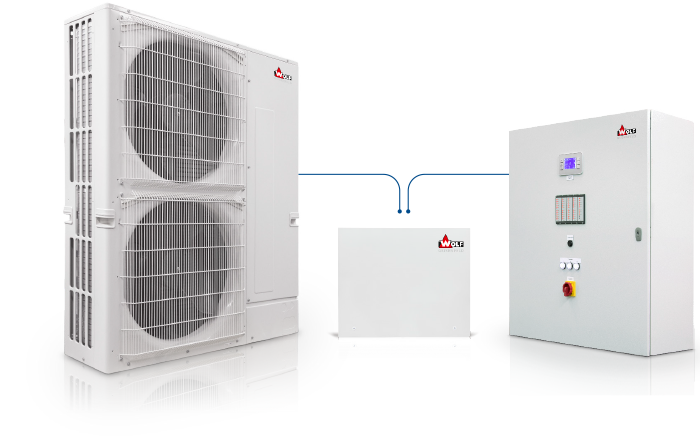

External heat pumps

A perfectly matched system between WOLF C-MAX cooling and a specially developed communication system for air handling units in combination with external heat pumps.

  • Stepless capacity control by 0 – 10V signal
  • 20 – 100 % for cascades
  • 40 – 100 % for Single Split
  • Precise temperature regulations
  • Optimal defrost mode for cascade applications
  • Easy assembly and pipe installation
  • Cascading with max. 6 units possible
  • Variable air volume flow rates possible
  • Refrigeration capacity 3,6 – 150 kW by cascade
  • Heating capacity 4,1 – 162 kW by cascade
  • High reliability for cascade applications
  • Full heating capacity down to -15 °C by patented inverter technology

» WOLF INVERTER HEAT PUMPS
ENABLE A RELIABLE OPERATION
AT THE HIGHEST LEVEL «

Future refrigerant R32

Many Application Advantages thanks to Refrigerant R32

  • Higher energy efficiency
  • Refrigerant charge reduced by 20 %
  • Improved performance in heating operation
  • Significantly smaller CO2 footprint throughout the whole product lifetime

Special Features

  • High reliability with low energy consumption
  • Longer pipes than with R410A power inverters possible
  • Consistently high nominal heating capacity down to -15 °C

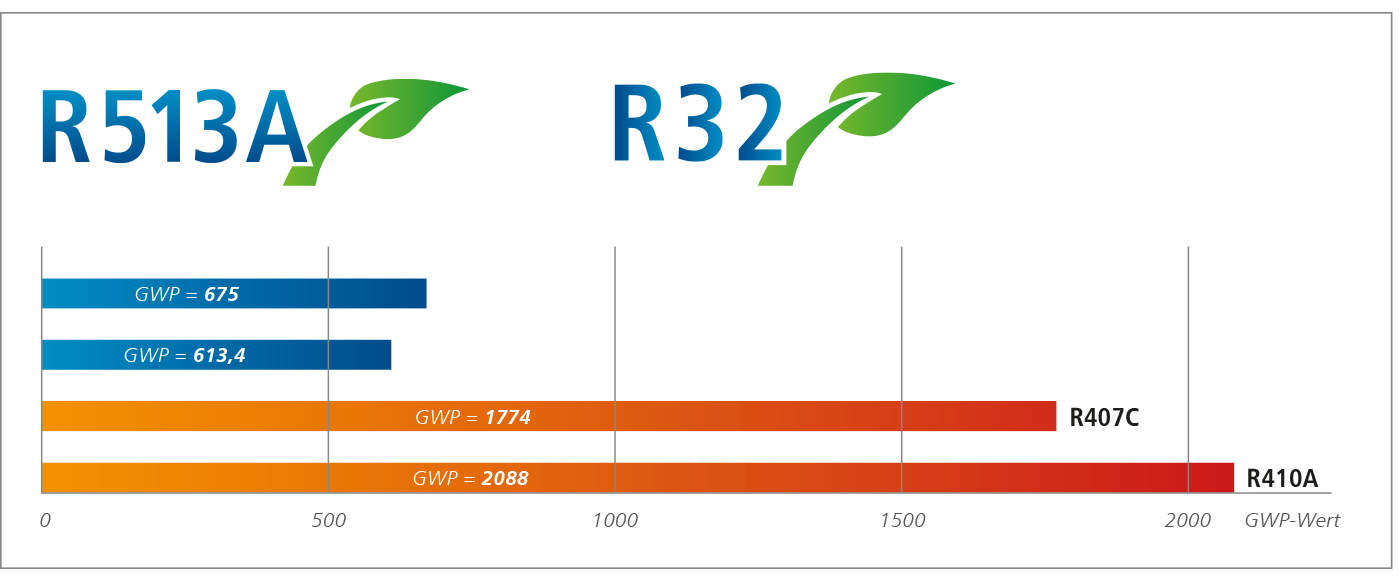

Comparison of Global Warming Potential of Refrigerants

WOLF RLT-Gerät WK-com PRO

Continuous efficiency

With our systems, there can be no oversizing.

Compared to conventional heat pumps, our WOLF inverter heat pumps guarantee a constantly high efficiency down to temperatures of -15 °C, whereas the performance of units by other manufacturers is already stagnating at plus temperatures.

A continuous power input and output is avoiding power peaks which would impair product lifetime; resources are preserved.

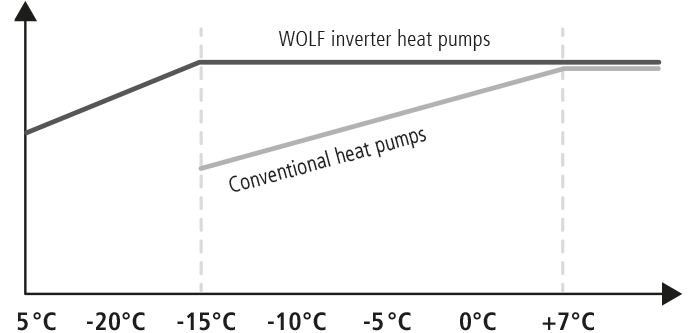

Inverter Performance

WOLF RLT-Gerät WK-com PRO
WOLF RLT-Gerät WK-com PRO

Matched to each other

A Plus in Performance by Perfect Cooperationbeitet

For an ideal realization of technical efficiency, all components are optimally matched by WOLF experts – the only way to guarantee a smooth operation in safety and reliability.

By integrating the components into a common solution, they can be adapted to their application down to the last detail.

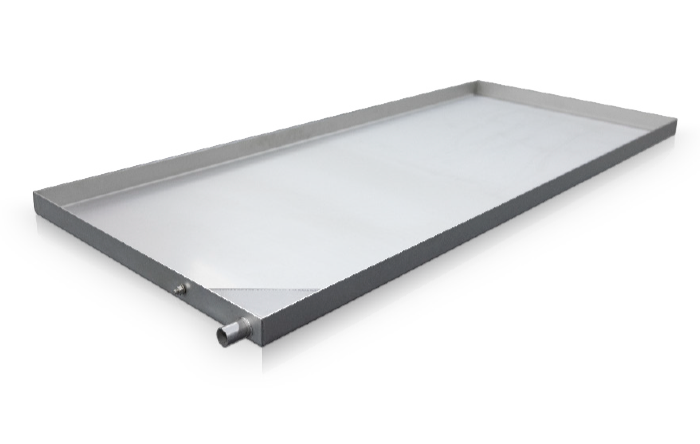

Oil protector

  • Collection system for refrigeration and air-conditioning plants to be placed upon
  • Prevents oil of water hazard class 1 to 3 (WGK1-WGK3) which has run into the protector from being flushed out in rain.
  • In rain, the refrigerating machine oil is retained by a patented oil separation system according to legal requirements.
  • A combined temperature and level thermostat protects the oil protector from freezing, guaranteeing full function even at heavy minus temperatures.
WOLF RLT-Gerät WK-com PRO
